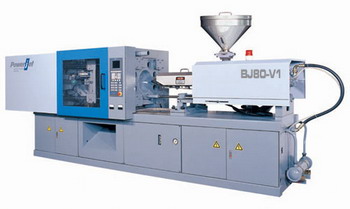

SPECIFICATION UNIT BJ80V1 International Used Size 800-220 CLAMPING UNIT Clamping force 800 KN Opening stroke 270 mm Max.daylight 570mm Platen size 540 x 490 mm x mm Space between 355 x 300 mm x mm Max.mold height 300 mm Min.mold height 135 mm Ejector stroke 75 mm Ejector force 25KN INJECTION UNIT Screw diameter 30 34 40 42 mm Screw L/D Ratio 23 20 19 18 Injection Pressure 220 172 125 112 MPa Shot volume 99 128 175 193 cm3 Shot weight(PS)88 113 156 172 g 3.1 4.0 5.5 6.0 OZ Injection rate (PS) 39 51 63 77 g /sec Plasticizing capacity (PS) 10 13 23 28 g /sec Screw stroke 140 mm Screw speed 150 rpm POWER UNIT Hydraulic system Pressure 14.5 MPa Pump motor power 7.5 kW Heater power 6.0 kW GENERAL Dry-cycle time 1.2 Sec Oil tank capacity 150 L Weight 3.0 Ton Dimensions(L×W×H) 3.8 x 0.94 x 1.7 m x m x m
