      Home>>Showroom
Plastic Mechanical Equipment >> Plastic Mechanical Equipment

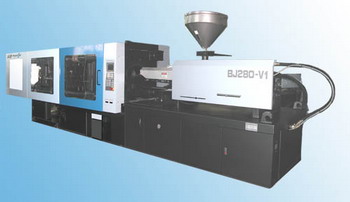

Model Number 280v1
Size
Description international  size rating   2800-1064
CLAMPING UINT
Clamping force 2800KN
Opening stroke 550mm
Max.daylight 1160mm
Platen size 840 x 780mm x mm
Space between 560 x 510mm x mm
Max.mold height 610mm
Min.mold height 280mm
Ejector stroke 145mm
Ejector force 75KN
INJECTION UNIT
Screw diameter 50  55  63mm
Screw L/D Ratio  22  20  17.5
Injection Pressure 201  166  127MPa
Shot volume 530  641  842cm3
Shot weight(PS) 490  593  778g(克)
O17.3  20.9  27.4Z(盎司)
Injection rate (PS) 146  170  230g /sec
Plasticizing capacity (PS) 38  48  67g /sec
Screw stroke 280mm
Screw speed 140rpm
POWER UNIT
Hydraulic system Pressure 15MPa
Pump motor power 22kW
Heater power 13.8kW
GENERAL
Dry-cycle time 3.0Sec
Oil tank capacity 400L
Machine weight 8.8Ton
Machine dimensions
(L×W×H) 5.80 x 1.53 x 2.2m x m x m
