| Model
Number |

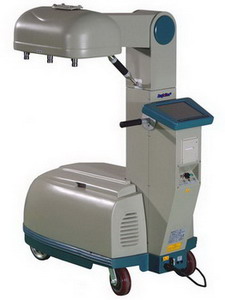

Mobile External Counterpulsation System |
| Size |
|
|
Description |
Model :AngioNew-V
Features :
Compact and light construction:
The patented one-piece
construction allows for significant
spacesaving and ease of storage.
Transportability:The device is on
wheels and can be transported
easily. It does not require a special
treatment bed or a dedicated
treatment room.
Easy operation:The fully
automated AngioNew-V system
provides optimized treatment
without depending on the
operator's judgment. It is
extremely user friendly, and it
takes much shorter time to train an
operator. It also displays D/S ratios
and SpO2 in real time.
Safe and comfortable treatment:
AngioNew-V offers many safety
features for protection patient,
operator and the device.
Safety Features :
Automatic stop and pressure relief
when patient heart rate is out of
range or ECG is lost.
Inflation too early or deflation too
late are prevented without any
harm to patient.
Automatic pressure relief upon
detection of early extra heart beat.
Cuff deflation in the event of power off.
Optoelectronic coupling for all signal
channels (ECG, plethysmography
and oximetry),to keep patient from
any electric contact.
DC/DC transfer power supply is
applied in ECG to protect patient.
Emergency stop controlled by patient.
Insulation transformer is employed
in the machine to protect the
patient and operator. Air pressure
sensor installed in the air tank
assures the pressure stable
around the preset range during
counterpulsation.
Safety exhausting valve is employed
to assure the prompt air pressure
relief in abnormal condition.
Technical Specifications :
Power Supply :AC 120V, 220V or 240V. 2400W.
Dimensions :48×24×58in. (1225×620×1467mm)
Net Weight :387 Ib. (176kg)
Triggering :35-120 BPM
Pressure Application :3 pairs of cuffs for lower extremities, pressure 0~0.045MPa.
LCD Monitor(10.4") :ECG, Inf/Def timing, pulse plethysmograph, Patient ID,
heart rate, D/S ratios,
premature contraction count,
blood oxygen saturation(SPO2),
treatment time, time and date,
touch screen for operation.
Information :work state, Inf/Def
parameter, software version, etc.
|
|
| |
|
